Heavy Duty Uncoiler
2022/04/09
54

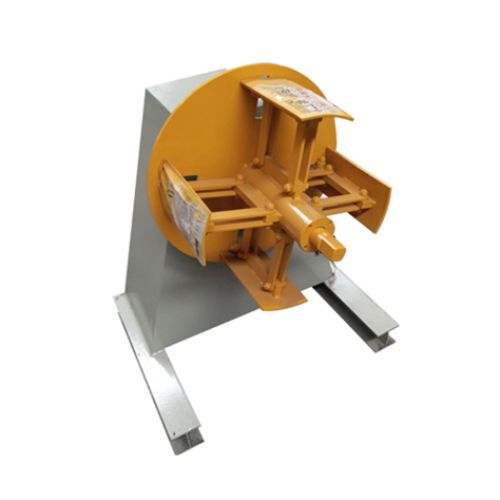

Heavy Duty Uncoiler
It is suitable for coil feeding of various materials, both sheet metal and non-metallic materials; the brake device can be adjusted for tightness, and the main shaft adopts a reinforced structure to make the coil rotate more smoothly and increase its load force; Japan electromagnetic contactor and Electronic parts, less failure and long life.
型號/Model | MT-200 | MT-300 | MT-400 | MT-500 |
最大料寬(mm) | 200 | 300 | 400 | 500 |
料厚(mm) | 0-1.6 | 0-3.0 | 0-3.0 | 0-3.0 |
馬達(kw) | 0.37 | 0.75 | 1.5 | 1.5 |
卷料內(nèi)徑(mm) | 450-530 | 450-530 | 450-530 | 450-530 |
卷料外徑（mm） | 1200 | 1200 | 1200 | 1200 |
最大料重(KG) | 500 | 800 | 1200 | 1500 |
機器重量（KG） | 320 | 370 | 420 | 450 |
設(shè)備尺寸（mm） | 750*810*980 | 750*810*1070 | 1050*1100*1080 | 1200*1110*1080 |
電源 | AC三相380V AC Three-phase 380V | |||
選配 | 帶動力（with power）/液壓擴張（Hydraulic Expansion）/ | |||
